MSTAR UV5+

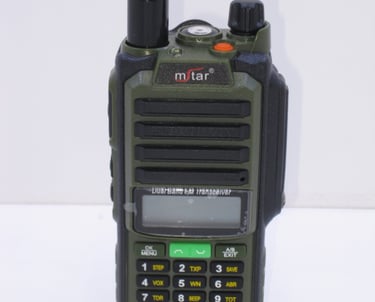

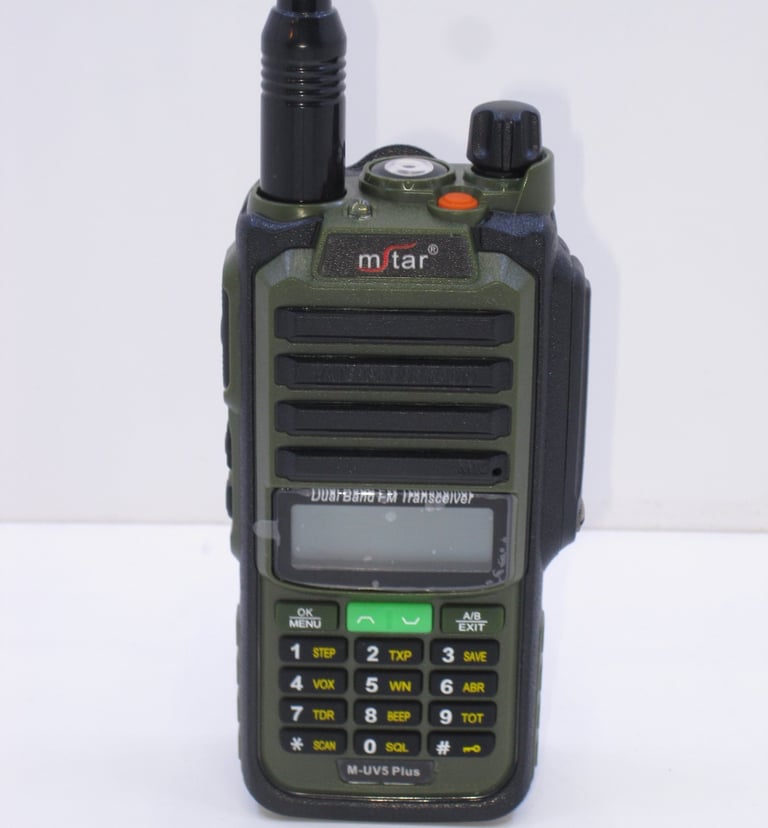

MSTAR UV5 Plus Dual Band FM Transceiver
The MSTAR UV5 Plus is a walkie-talkie (HT) or two-way radio designed for long-range communication, particularly for outdoor use. This device features a sturdy design and is available in several attractive colors, including Military Green, Black, Orange, and Red.
Specifications:
Type: Dual Band, supporting both VHF and UHF frequencies.
Frequency Range:
VHF: 136 - 174 MHz
UHF: 400 - 470 MHz
Output Power: 5W.
Operation Modes: VFO, Channel Mode.
Additional Functions:
Dual Band Display & Standby: Capable of displaying and monitoring two frequencies simultaneously.
FM Radio: Can be used as a regular FM radio to listen to broadcasts.
VOX (Voice Operated Transmit): An automatic transmission feature that activates when voice is detected.
CTCSS/DCS: Sub-audible tone codes to avoid interference from other users.
Emergency Alarm: An emergency button to send a distress signal.
LED Flashlight: A built-in LED flashlight that is useful in dark conditions.
Battery Saver: A power-saving mode to extend battery life.
Battery:
Type: Li-ion (Lithium-ion) Battery
Capacity: Generally 1800mAh, although some variants may have a slightly different capacity.
Charging: Uses a desktop charger included in the package.
Durability:
The MSTAR UV5 Plus features a robust design, often referred to as "rugged" or "tough." Although IP (Ingress Protection) specifications are not always explicitly listed in all sources, its physical design indicates good resistance to impacts and use in outdoor environments. Some sources mention resistance to dust and moisture, but it is not recommended for use in submerged conditions.
Range:
The communication range for the MSTAR UV5 Plus varies, ranging from 1 to 5 km or can even reach 10 km in optimal conditions. This distance is highly dependent on:
Terrain: The range will be maximized in open areas without obstacles (for example, at sea or in open fields).
Obstacles: Buildings, hills, dense forests, and other physical objects will significantly reduce the effective range.
Environmental Conditions: Weather and radio wave interference also play a role.

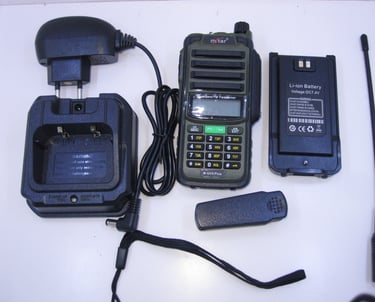

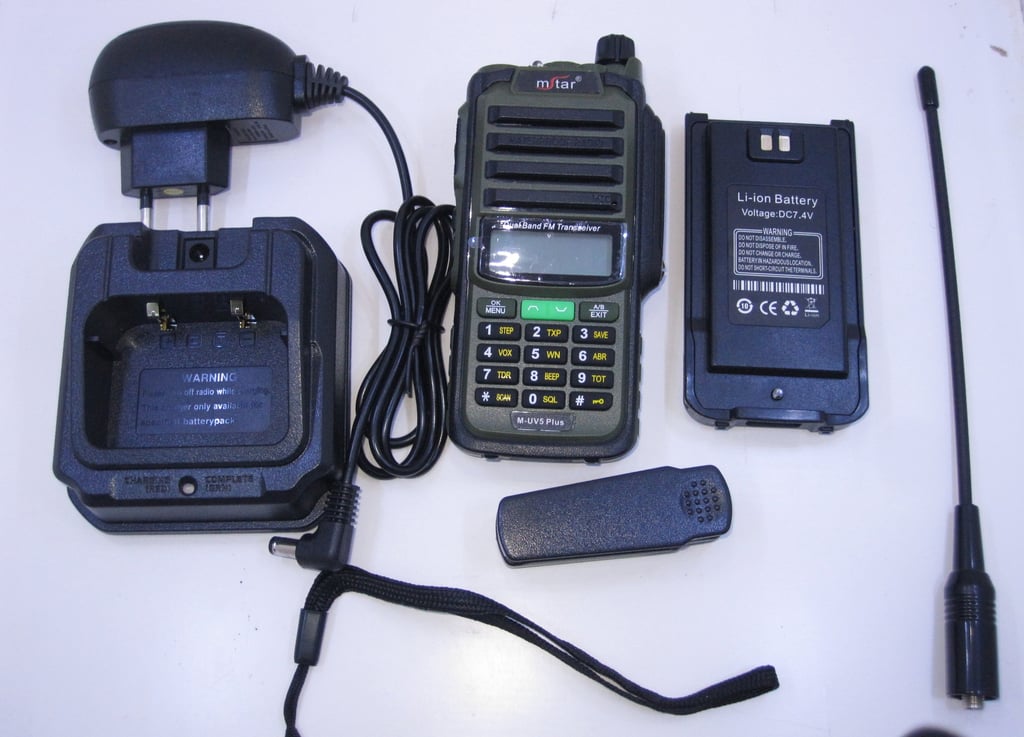

Included Accessories:
The standard Mstar UV5 Plus purchase package includes:
MSTAR UV5 Plus Radio Unit: The main body of the radio.
Li-ion Battery: A detachable battery.
Antenna: A detachable antenna.
Desktop Charger: The charging cradle.
Power Adapter: The adapter for the desktop charger.
Belt Clip: A clip to be attached to a belt.
Lanyard: A strap for hanging the device.
User Manual: The user guide.
